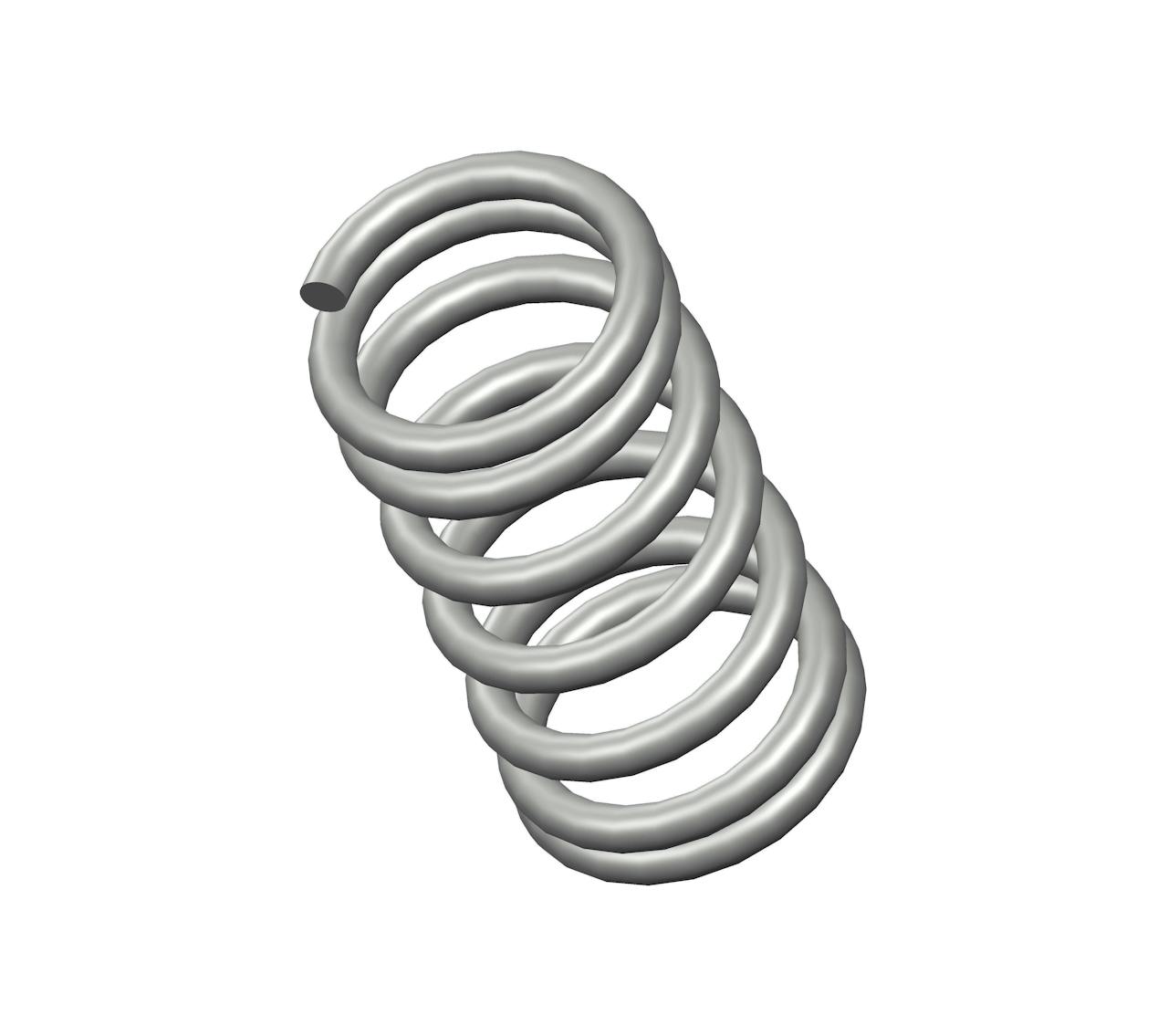

2556CS - 0.50 Inch High Carbon Compression Springs

Inventory Status
Estimated Lead Time

The 2556CS is a regular compression spring manufactured by Century Spring. It is made from High Carbon material and has a zinc finish. This spring has a wire diameter of 0.032 inches, an outer diameter of 0.25 inches, and a free length of 0.5 inches. It has a spring rate of 29 lbs/inch and a maximum load of 5.2 Pound Force. The 2556CS is a closed-end spring, meaning the ends are squared. It is a standard compression spring and is suitable for various applications.

Century Spring offers fast shipping and maintains a significant stock inventory. We are proud to manufacture our products, including the 2556CS, in the United States. With our reliable shipping and ample supply, Century Spring ensures that customers can quickly receive the springs they need for their projects.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Ends Closed
Finish Zinc
Free Length 0.5 in
Inside Diameter 0.186 in
Material Spring Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 29 lbs/in
SKU 2556CS
Solid Length 0.26 in
Suggested Max Deflection 0.18 in
Suggested Max Load 5.2 lbf
Total Coils 7
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Closed
Finish Zinc
Free Length 12.7 mm
Inside Diameter 4.72 mm
Material Spring Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 5.08 N/mm
SKU 2556CS
Solid Length 6.6 mm
Suggested Max Deflection 4.57 mm
Suggested Max Load 23.13 N
Total Coils 7
Wire Diameter 0.81 mm
