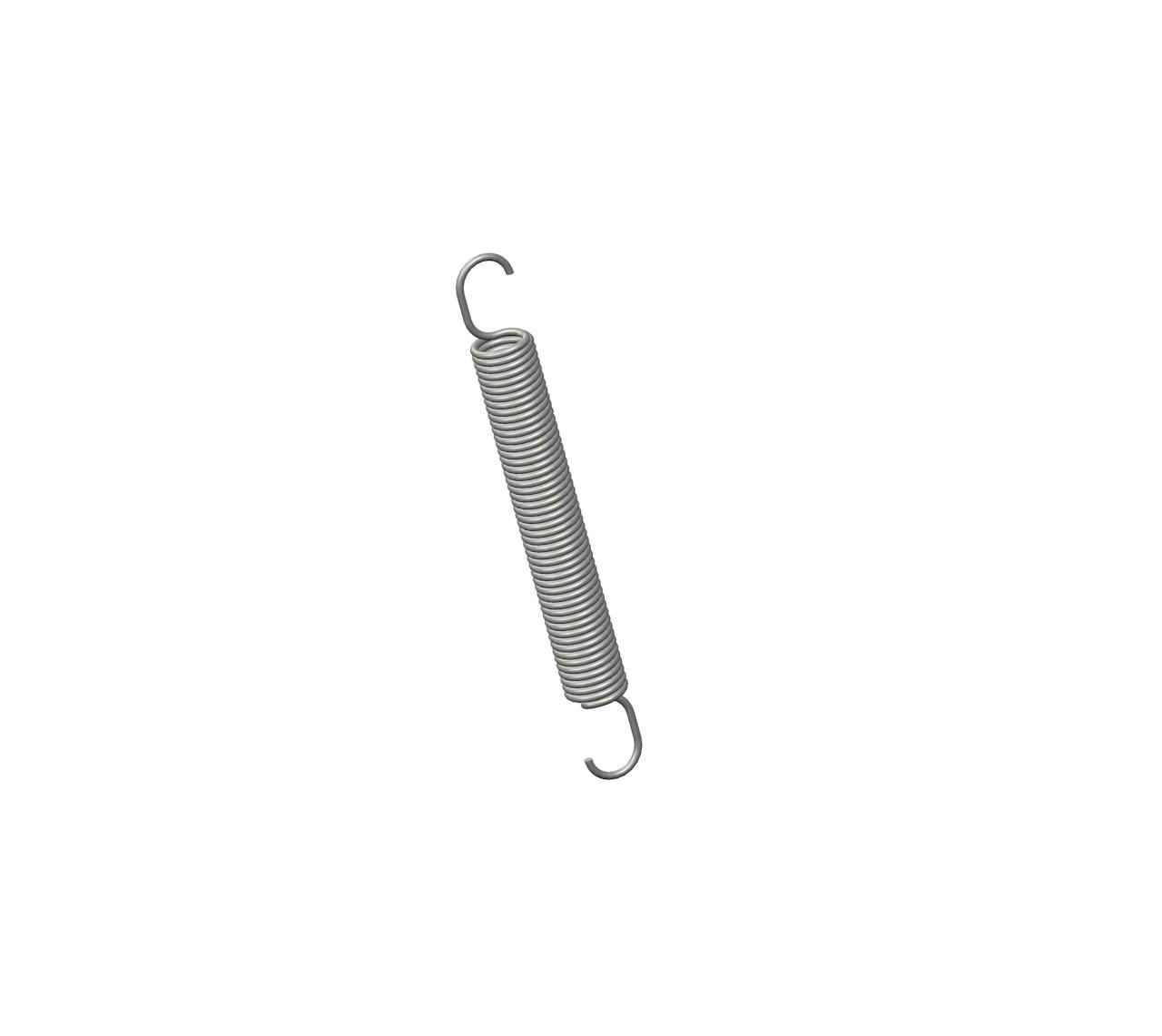

5647CS - 4 Inch Spring Steel Extension Springs
The 5647CS is a regular extension spring manufactured by Century Spring. It is made from spring steel and has a zinc finish. This spring has a wire diameter of 0.0625 inches, an outside diameter of 0.5 inches, and a free length of 4 inches. It has an initial tension of 3 Pound and a maximum deflection of 2.6 inches. The 5647CS has a spring rate of 5.1 lbs/inch and a maximum load of 16 Pound Force. It features extended hook ends for easy installation. The 5647CS is a standard extension spring suitable for a wide range of applications.
At Century Spring, we pride ourselves on our fast shipping and extensive stock inventory. We understand the importance of quick turnaround times for our customers. That's why we offer reliable and efficient shipping services to ensure that you receive your springs promptly. Additionally, we maintain a significant stock inventory, including the 5647CS, which means we have the springs you need readily available. Our products are proudly made in the United States, guaranteeing high-quality craftsmanship and supporting local manufacturing. Trust Century Spring for all your spring needs.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Extended Hook |
| Finish | Zinc |
| Initial Tension | 3 lb |
| Length | 4 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 5.1 lbs/in |
| SKU | 5647CS |
| Sugg Max Deflection | 2.6 in |
| Sugg Max Load | 16 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Extended Hook |
| Finish | Zinc |
| Initial Tension | 1.36 kg |
| Length | 101.6 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 0.89 N/mm |
| SKU | 5647CS |
| Sugg Max Deflection | 66.04 mm |
| Sugg Max Load | 71.17 N |
| Wind Direction | Left |
| Wire Diameter | 1.59 mm |
