5800CS - 2.25 Inch Spring Steel Extension Springs

Inventory Status
In-stock
Estimated Lead Time
In-stock parts: usually ships in 12-24 hours

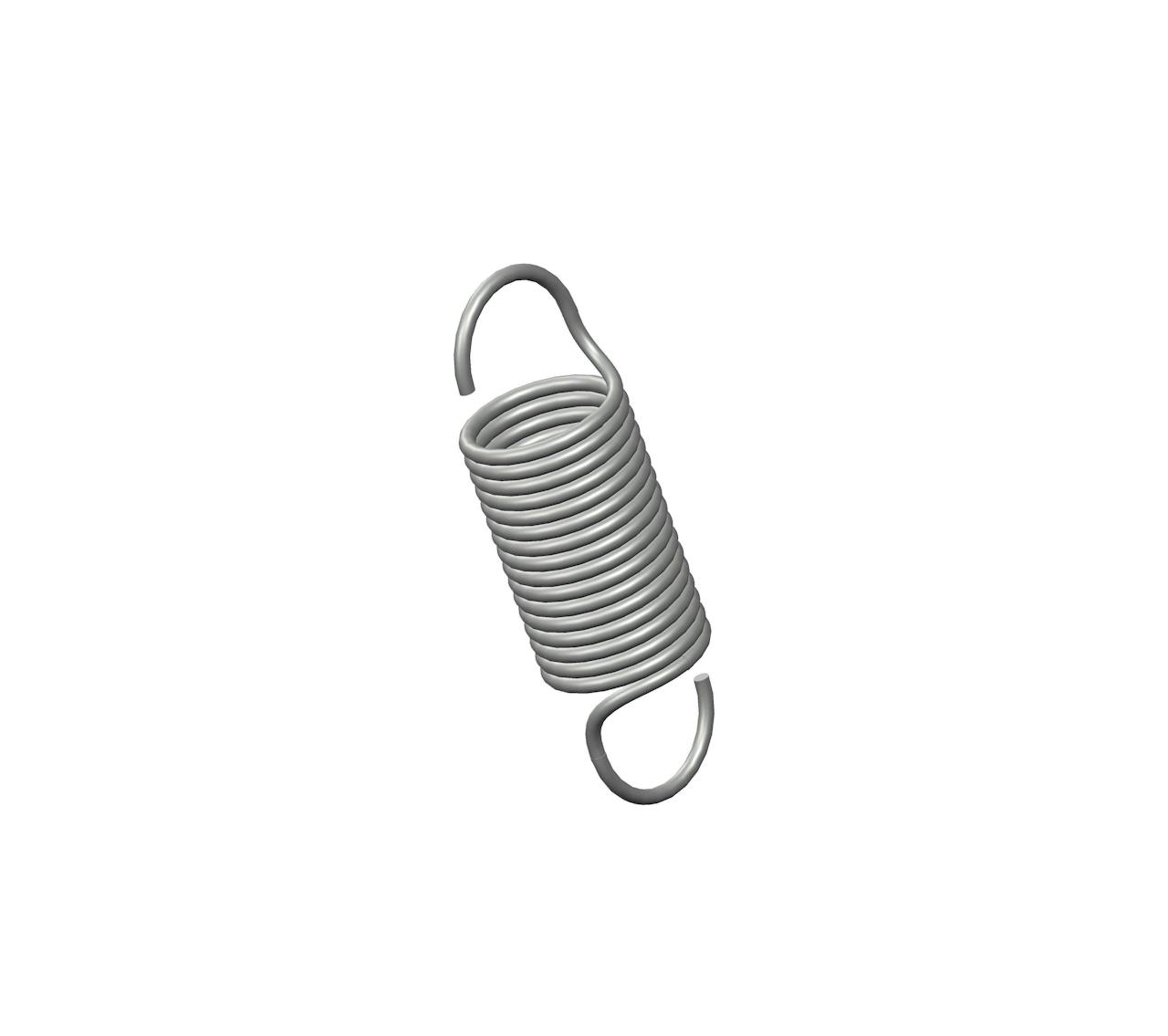

The 5800CS is a regular extension spring manufactured by Century Spring. This spring is made from spring steel and has a zinc finish. It has a wire diameter of 0.0625 inches, an outside diameter of 0.64 inches, and a free length of 2.25 inches. The 5800CS has an initial tension of 2 pounds and a maximum deflection of 1.8 inches. It can withstand a maximum load of 12 pound force. With its left wind direction and machine hook ends, this extension spring is suitable for a variety of applications.

At Century Spring, we take pride in our fast shipping and extensive stock inventory. We understand the importance of prompt delivery, which is why we strive to get your orders out quickly. Additionally, our products, including the 5800CS, are proudly made in the United States. With our reliable shipping and ample supply, Century Spring ensures that customers can easily access the high-quality springs they need for their projects.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Century Spring
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 2.25 in
Material Spring Steel
Outside Diameter 0.64 in
Part Type Standard
Rate 5.8 lbs/in
SKU 5800CS
Sugg Max Deflection 1.8 in
Sugg Max Load 12 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 57.15 mm
Material Spring Steel
Outside Diameter 16.26 mm
Part Type Standard
Rate 1.02 N/mm
SKU 5800CS
Sugg Max Deflection 45.72 mm
Sugg Max Load 53.38 N
Wind Direction Left
Wire Diameter 1.59 mm
