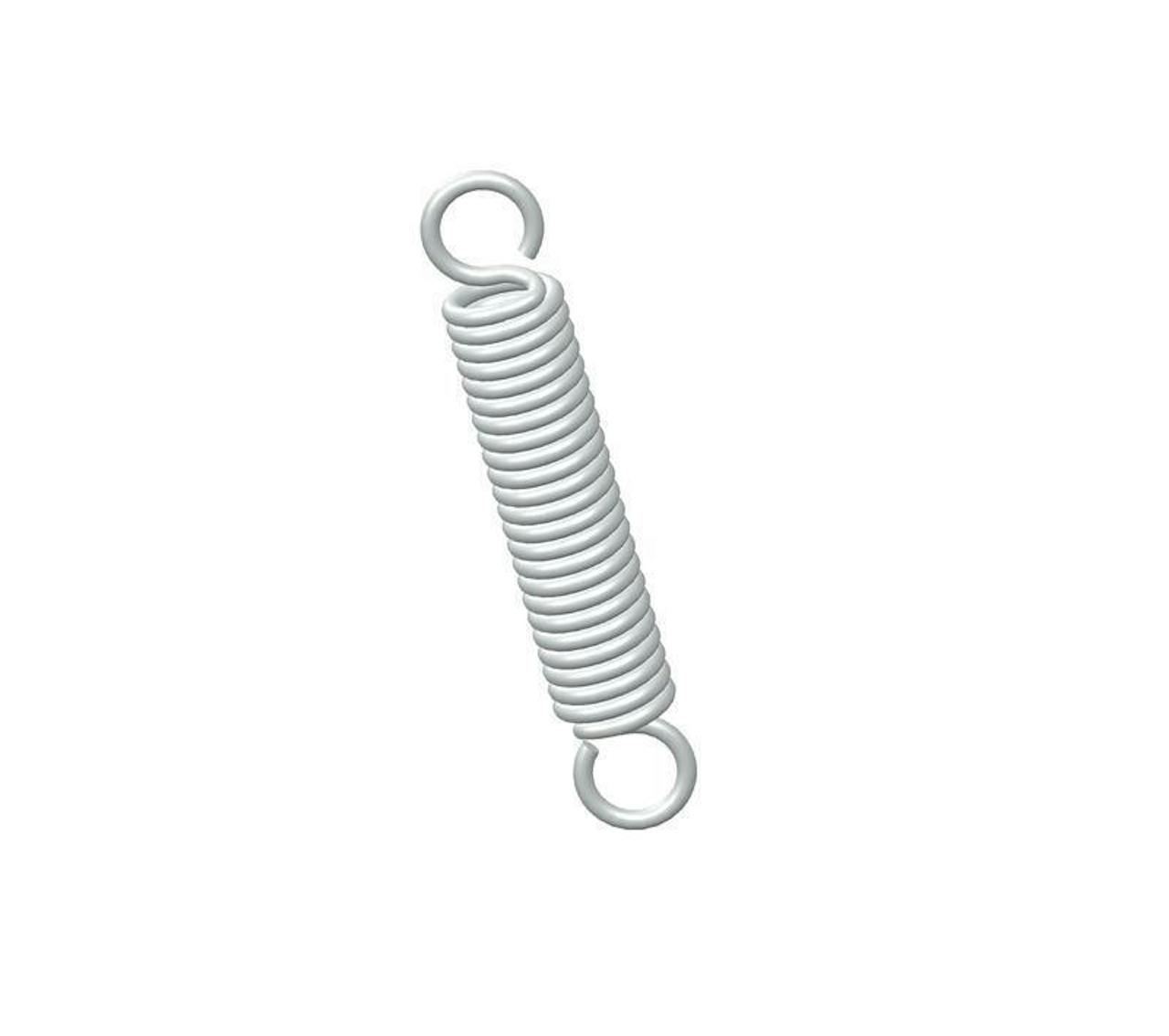

80200SCS - 1 Inch 302/304 Stainless Steel Extension Springs
The 80200SCS is a regular extension spring manufactured by Century Spring. It is made from 302/304 Stainless Steel and has a natural finish. This spring has a wire diameter of 0.029 inches, an outside diameter of 0.18 inches, and a free length of 1 inches. It has an initial tension of 0.5 Pound and a maximum load of 4.3 Pound Force. The 80200SCS is a left wind spring with full loop ends. It has a spring rate of 9.9 lbs/inch and a maximum deflection of 0.39 inches. This regular extension spring is suitable for various applications.
At Century Spring, we offer fast shipping and maintain a significant stock inventory. Our products, including the 80200SCS, are proudly made in the United States. With our reliable shipping and ample supply, Century Spring ensures that customers can quickly receive the springs they need for their projects.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.5 lb |
| Length | 1 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.18 in |
| Part Type | Standard |
| Rate | 9.9 lbs/in |
| SKU | 80200SCS |
| Sugg Max Deflection | 0.39 in |
| Sugg Max Load | 4.3 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.23 kg |
| Length | 25.4 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.57 mm |
| Part Type | Standard |
| Rate | 1.73 N/mm |
| SKU | 80200SCS |
| Sugg Max Deflection | 9.91 mm |
| Sugg Max Load | 19.13 N |
| Wind Direction | Left |
| Wire Diameter | 0.74 mm |
