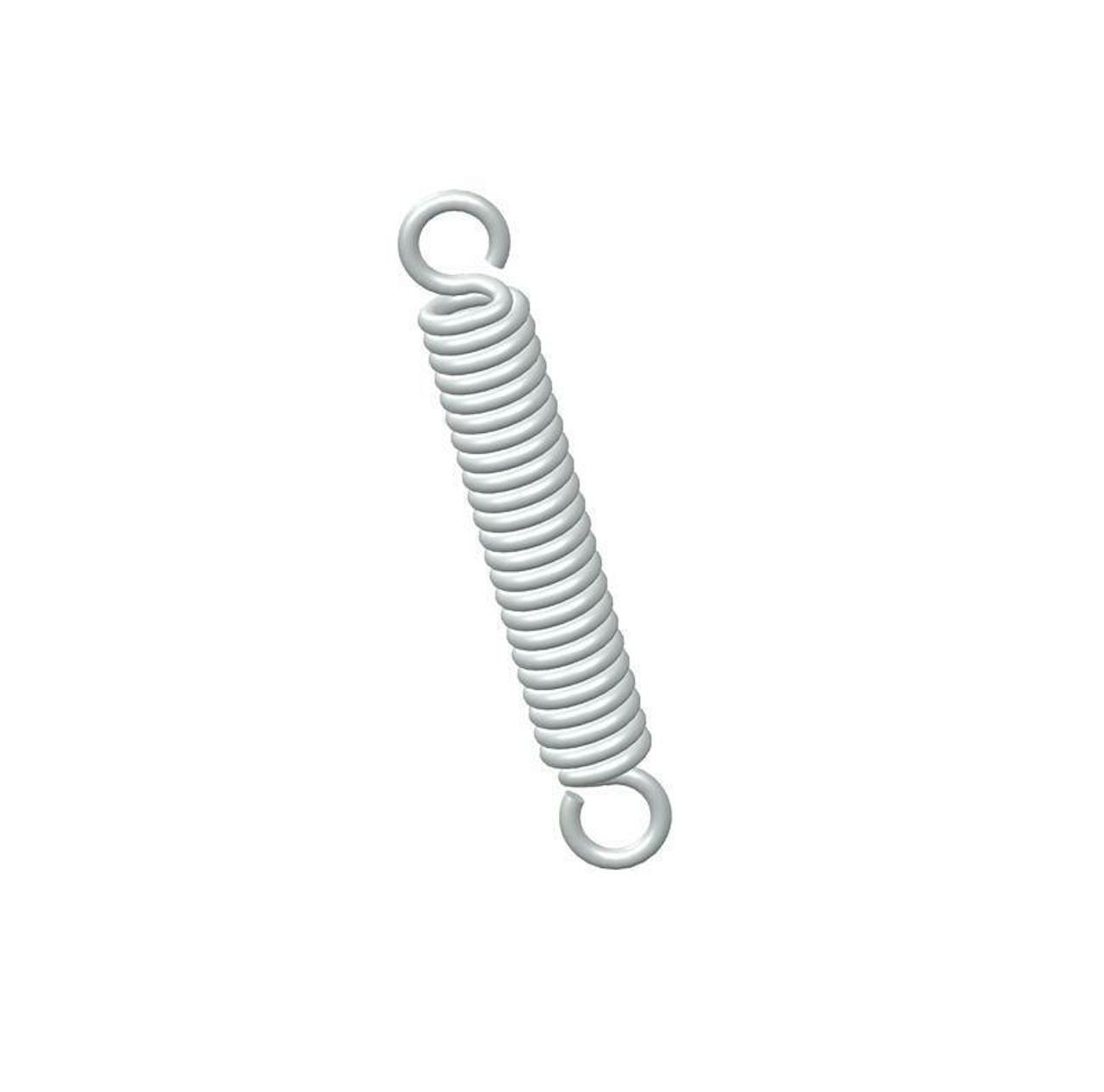

80227SCS - 1.13 Inch 302/304 Stainless Steel Extension Springs
The 80227SCS is a regular extension spring manufactured by Century Spring. This spring is made from 302/304 stainless steel and has a wire diameter of 0.034 inches. It has an outside diameter of 0.18 inches and a free length of 1.13 inches. The initial tension of the spring is 0.7 pounds, and it has a maximum deflection of 0.3 inches. The spring rate is 20 inch-pounds, and it can handle a maximum load of 6.7 pounds. The ends of the spring are full looped, and it is suitable for various applications.
At Century Spring, we take pride in our fast shipping and substantial stock inventory. We understand the importance of receiving your springs promptly, which is why we ensure quick delivery. Additionally, our products are proudly made in the United States, guaranteeing high-quality craftsmanship. With our reliable shipping and ample supply, Century Spring is committed to providing you with the springs you need for your projects.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.7 lb |
| Length | 1.13 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.18 in |
| Part Type | Standard |
| Rate | 20 lbs/in |
| SKU | 80227SCS |
| Sugg Max Deflection | 0.3 in |
| Sugg Max Load | 6.7 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.32 kg |
| Length | 28.7 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.57 mm |
| Part Type | Standard |
| Rate | 3.5 N/mm |
| SKU | 80227SCS |
| Sugg Max Deflection | 7.62 mm |
| Sugg Max Load | 29.8 N |
| Wind Direction | Left |
| Wire Diameter | 0.86 mm |
