80235CS - 2.75 Inch Music Wire Extension Springs

Inventory Status
In-stock
Estimated Lead Time
In-stock parts: usually ships in 12-24 hours

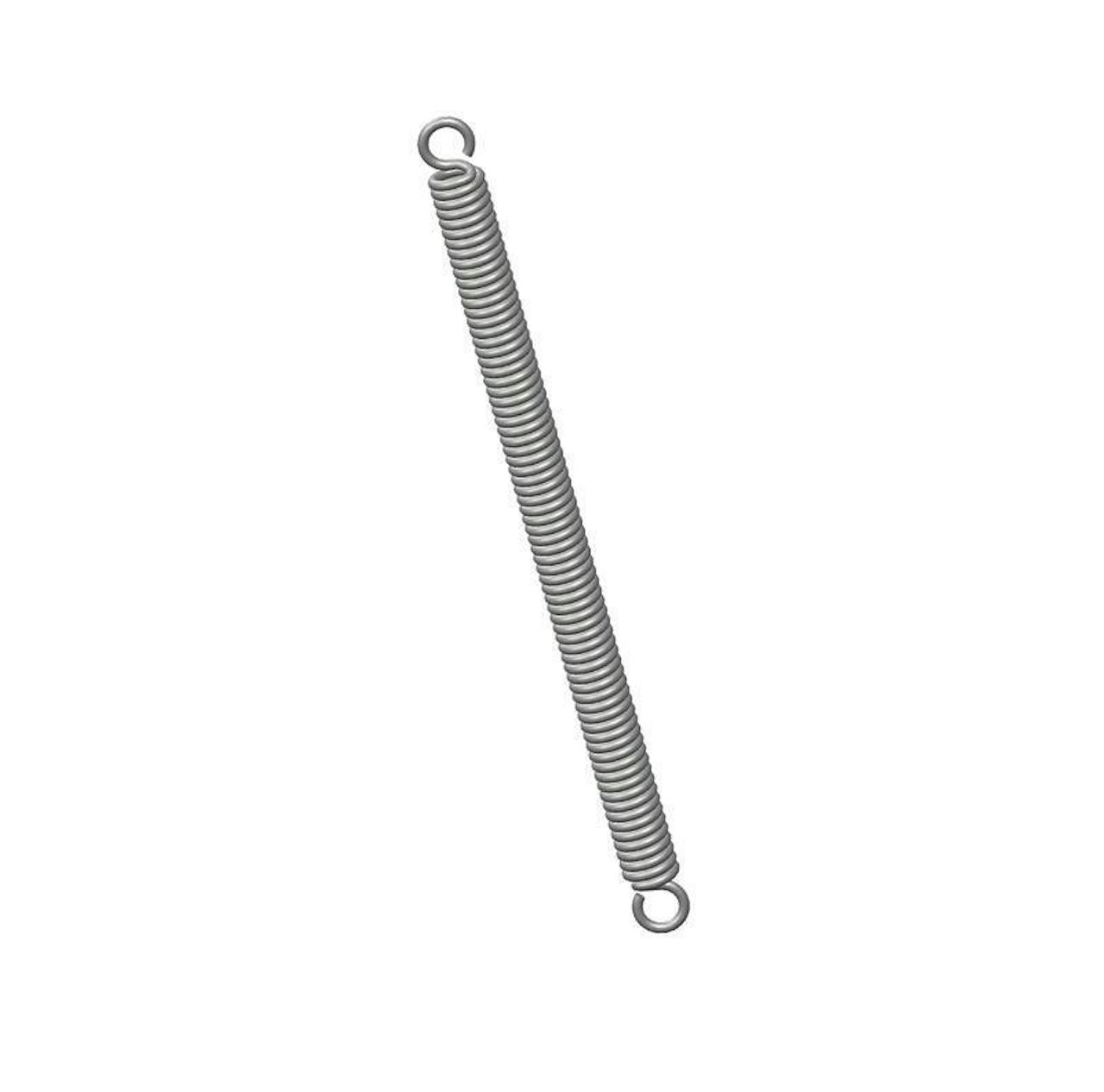

The 80235CS is a regular extension spring manufactured by Century Spring. This spring is made from Music Wire and has a natural finish. It has a wire diameter of 0.034 Inch and an outer diameter of 0.18 inches. The free length of the spring is 2.75 inches, and it has an initial tension of 0.8 Pound. The maximum deflection of the spring is 1.1 inches, and it can handle a maximum load of 9.9 Pound Force. The 80235CS is a left-wound spring with full loop ends. It has a spring rate of 8.1 lbs/inch and is suitable for a wide range of applications.

At Century Spring, we pride ourselves on our fast shipping and extensive stock inventory. We understand the importance of getting the right springs quickly, and that's why we offer prompt shipping to ensure your projects stay on track. In addition, all our springs, including the 80235CS, are proudly made in the United States. With our commitment to quality and convenience, Century Spring is your trusted source for all your spring needs.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Century Spring
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 2.75 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 8.1 lbs/in
SKU 80235CS
Sugg Max Deflection 1.1 in
Sugg Max Load 9.9 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 69.85 mm
Material Music Wire
Outside Diameter 4.57 mm
Part Type Standard
Rate 1.42 N/mm
SKU 80235CS
Sugg Max Deflection 27.94 mm
Sugg Max Load 44.04 N
Wind Direction Left
Wire Diameter 0.86 mm
