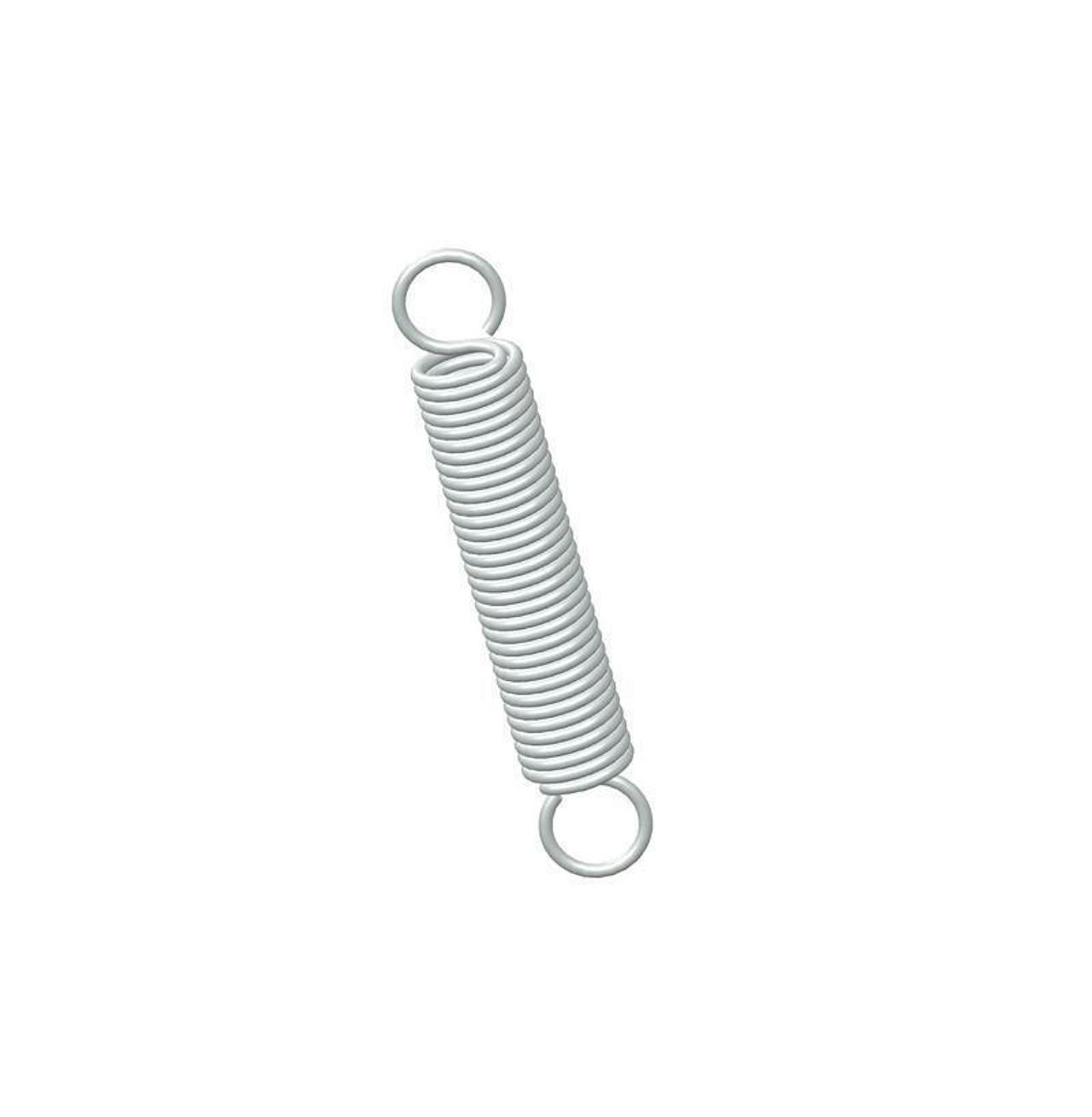

80398SCS - 1.75 Inch 302/304 Stainless Steel Extension Springs
The 80398SCS is a regular extension spring manufactured by Century Spring. This spring is made from 302/304 Stainless Steel and has no finish. It has a wire diameter of 0.037 inches, an outside diameter of 0.3 inches, and a free length of 1.75 inches. The initial tension of the spring is 0.6 Pound, and it has a maximum deflection of 1.4 inches. The spring has a rate of 3.4 lbs/inch and can withstand a maximum load of 5.4 Pound Force. It features full loop ends and is suitable for various applications.
At Century Spring, we take pride in our fast shipping and extensive stock inventory. We understand the importance of timely delivery, and that's why we ensure that our products, including the 80398SCS, are promptly shipped to our customers. Additionally, all our springs are proudly made in the United States. With our reliable shipping and ample supply, you can trust Century Spring to provide you with high-quality springs for your projects.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.6 lb |
| Length | 1.75 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.3 in |
| Part Type | Standard |
| Rate | 3.4 lbs/in |
| SKU | 80398SCS |
| Sugg Max Deflection | 1.4 in |
| Sugg Max Load | 5.4 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.27 kg |
| Length | 44.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.62 mm |
| Part Type | Standard |
| Rate | 0.6 N/mm |
| SKU | 80398SCS |
| Sugg Max Deflection | 35.56 mm |
| Sugg Max Load | 24.02 N |
| Wind Direction | Left |
| Wire Diameter | 0.94 mm |
