80465CS - 2.50 Inch Music Wire Extension Springs

Inventory Status
In-stock
Estimated Lead Time
In-stock parts: usually ships in 12-24 hours

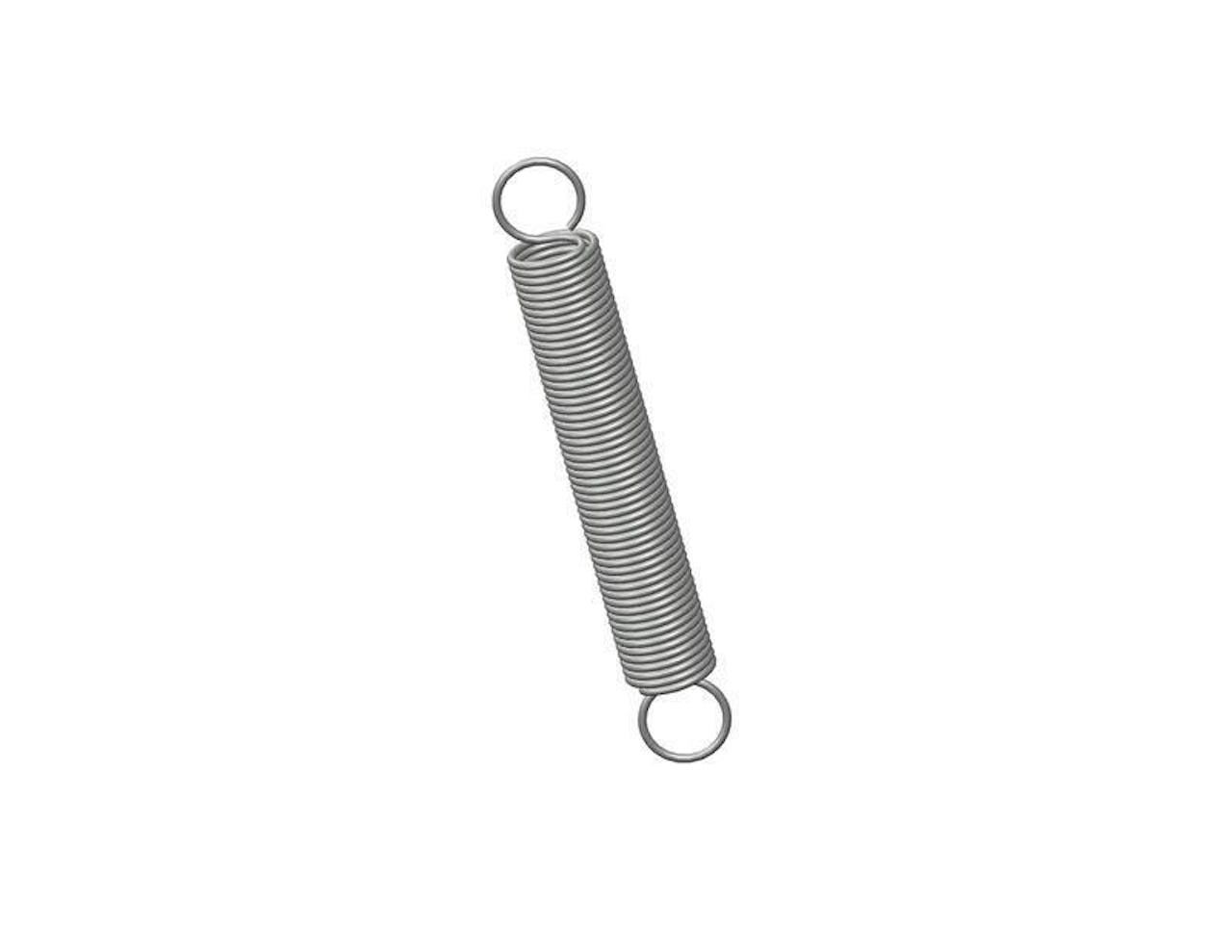

The 80465CS is a regular extension spring manufactured by Century Spring. It is made from Music Wire and has a natural finish. This spring has a wire diameter of 0.034 inches, an outer diameter of 0.359 inches, and a free length of 2.5 inches. It has an initial tension of 0.4 Pound and a maximum load of 5.4 Pound Force. The ends of this spring are full loops, providing secure attachment points. The 80465CS is a standard extension spring and is commonly used in various applications.

At Century Spring, we pride ourselves on our fast shipping and extensive stock inventory. We understand the urgency of your projects and strive to deliver your springs quickly. In addition, all our springs, including the 80465CS, are proudly made in the United States. We prioritize quality and reliability, ensuring that you receive the highest standard of springs for your needs. With Century Spring, you can count on efficient shipping and a wide selection of springs to support your projects.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Century Spring
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.359 in
Part Type Standard
Rate 1 lbs/in
SKU 80465CS
Sugg Max Deflection 4.9 in
Sugg Max Load 5.4 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.18 N/mm
SKU 80465CS
Sugg Max Deflection 124.46 mm
Sugg Max Load 24.02 N
Wind Direction Left
Wire Diameter 0.86 mm
