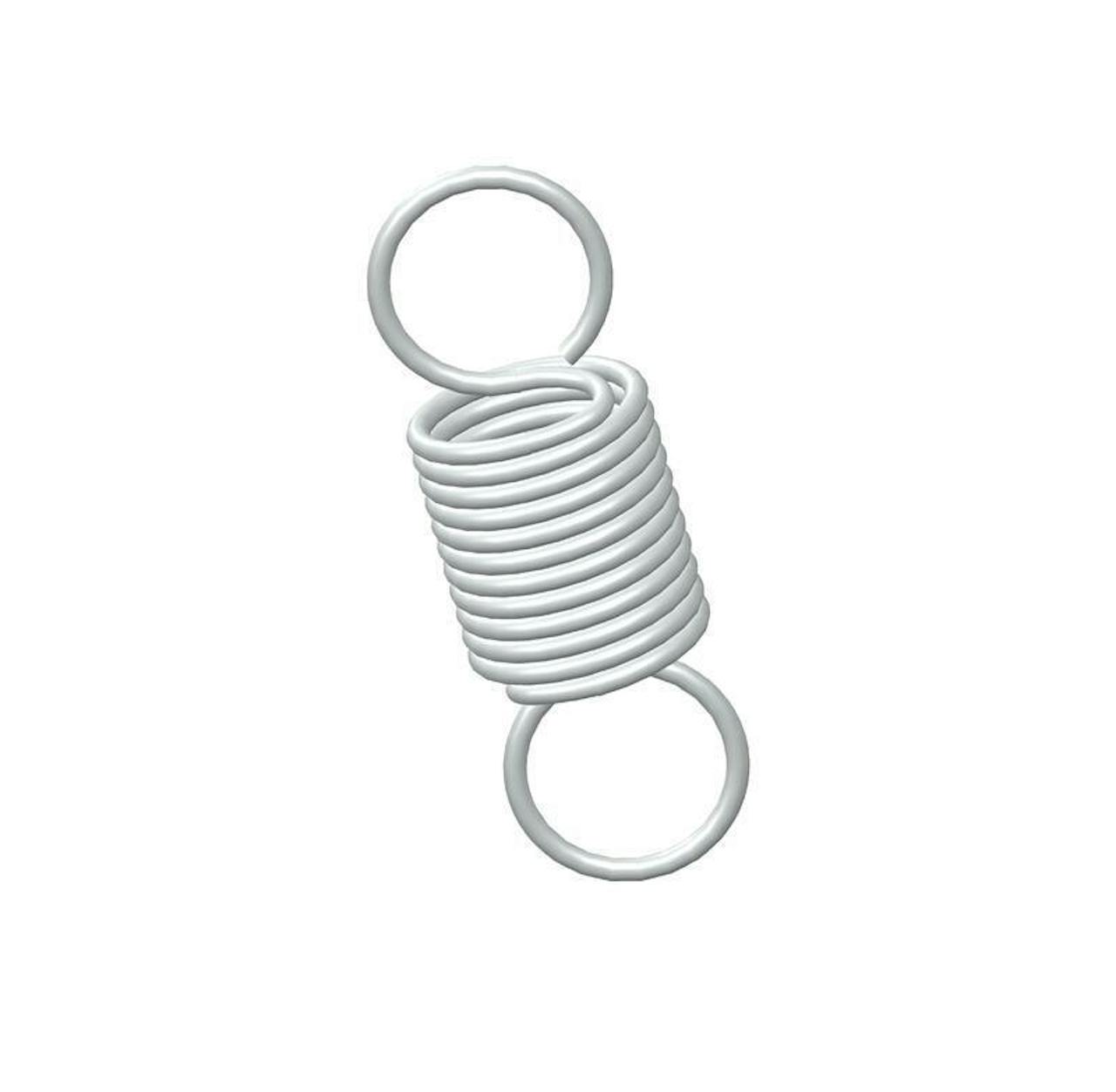

80977SCS - 3 Inch 302/304 Stainless Steel Extension Springs
The 80977SCS is a regular extension spring from Century Spring. It is made from 302/304 stainless steel and has a natural finish. This spring has a wire diameter of 0.095 inches, an outer diameter of 1 inches, and a free length of 3 inches. It has an initial tension of 2 Pound and a maximum deflection of 2 inches. The 80977SCS has a spring rate of 10 lbs/inch and can withstand a maximum load of 23 Pound Force. It features full loop ends, providing secure attachment. This regular extension spring is suitable for a variety of applications.
At Century Spring, we pride ourselves on our fast shipping and extensive inventory. We understand the importance of timely delivery and strive to ensure that our customers receive their springs promptly. With our significant stock supply, including the 80977SCS, we can fulfill orders efficiently. Additionally, all our springs are proudly made in the United States, guaranteeing high-quality craftsmanship. When you choose Century Spring, you can trust that you will receive top-notch products and exceptional service.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 3 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | 80977SCS |
| Sugg Max Deflection | 2 in |
| Sugg Max Load | 23 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.095 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 76.2 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | 80977SCS |
| Sugg Max Deflection | 50.8 mm |
| Sugg Max Load | 102.3 N |
| Wind Direction | Left |
| Wire Diameter | 2.41 mm |
