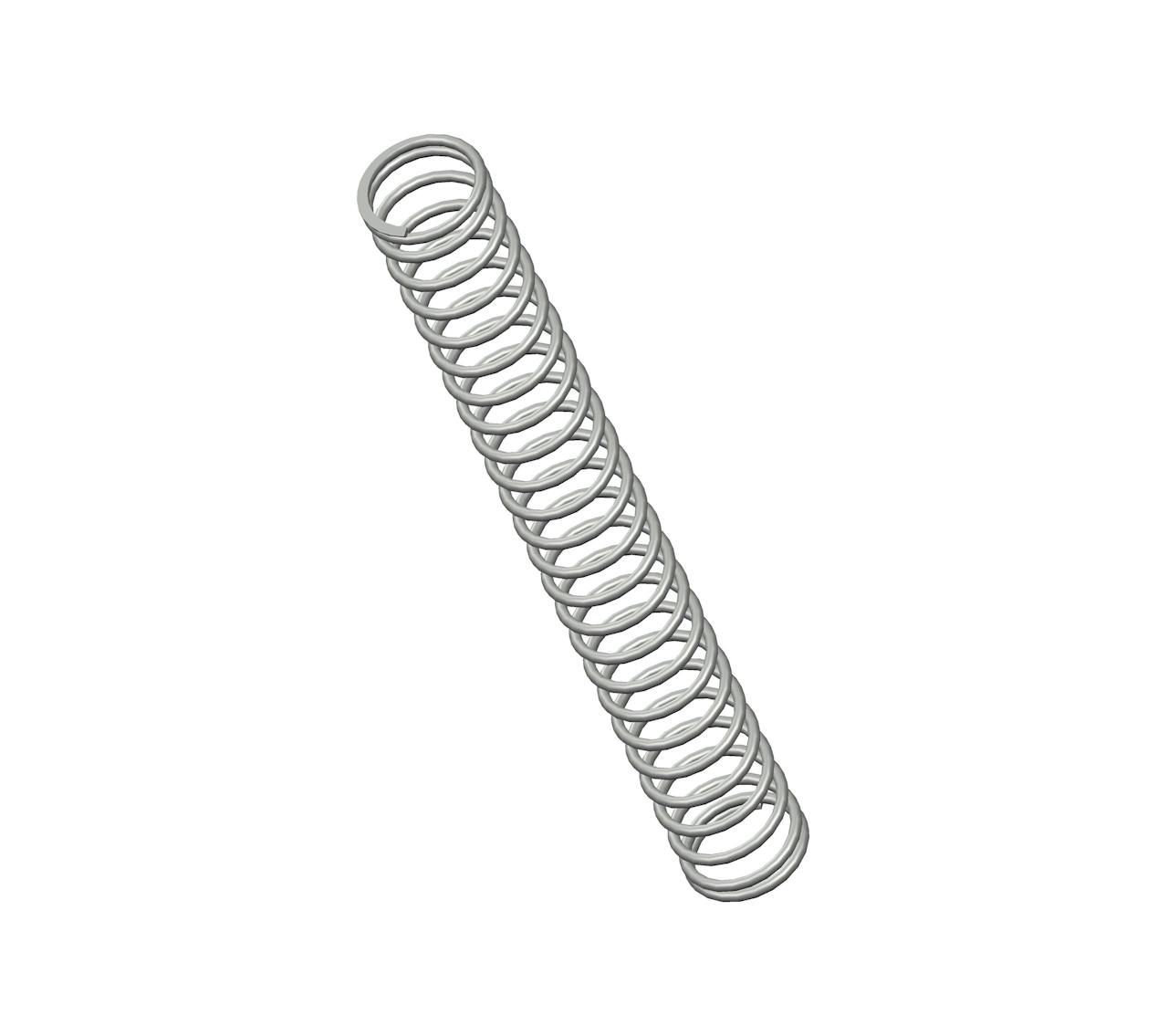

884CS - 8 Inch High Carbon Compression Springs

Inventory Status
Estimated Lead Time

The 884CS is a regular compression spring manufactured by Century Spring. It is made from High Carbon material with a zinc finish. This spring has a wire diameter of 0.091 inches, an outer diameter of 1 inches, and a free length of 8 inches. It has a spring rate of 5.6 lbs/inch and a maximum load of 25 Pound Force. The 884CS is a closed-end spring, meaning the ends are squared. It is a standard compression spring suitable for various applications.

At Century Spring, we pride ourselves on fast shipping and maintaining a significant stock inventory. Our products, including the 884CS, are proudly made in the United States. With our reliable shipping and ample supply, Century Spring ensures that customers can quickly receive the springs they need for their projects.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Ends Closed
Finish Zinc
Free Length 8 in
Inside Diameter 0.818 in
Material Spring Steel
Outside Diameter 1 in
Part Type Standard
Rate 5.6 lbs/in
SKU 884CS
Solid Length 2.41 in
Suggested Max Deflection 4.4 in
Suggested Max Load 25 lbf
Total Coils 25.5
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Closed
Finish Zinc
Free Length 203.2 mm
Inside Diameter 20.78 mm
Material Spring Steel
Outside Diameter 25.4 mm
Part Type Standard
Rate 0.98 N/mm
SKU 884CS
Solid Length 61.21 mm
Suggested Max Deflection 111.76 mm
Suggested Max Load 111.2 N
Total Coils 25.5
Wire Diameter 2.31 mm
