TO-5050LCS - Music Wire Torsion Springs

Inventory:
Estimated Lead Time

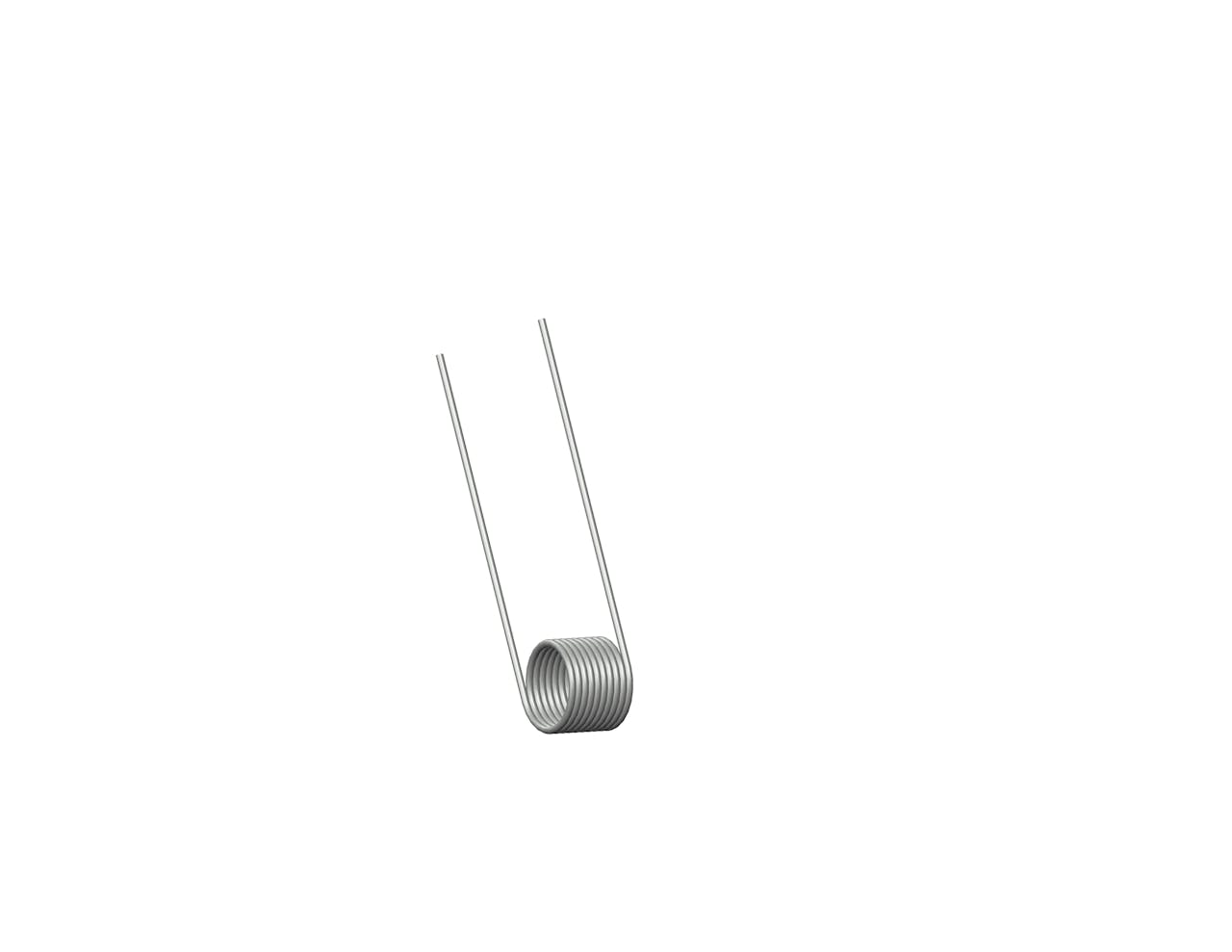

The TO-5050LCS is a left-wound torsion spring manufactured by Century Spring. This spring is made from high-quality music wire material and does not have a finish applied. It has an inside diameter of 0.214 inches and an outside diameter of 0.254 inches. The leg length measures 1 inches, and the body length is 0.23 inches. With a wire diameter of 0.02 inches, this torsion spring has a total of 9.5 coils. It offers a maximum torque of 0.19 inch-pounds and a maximum rotational deflection of 348 degrees. The TO-5050LCS is designed for standard measurement units and is suitable for various applications requiring torsion springs.

At Century Spring, we prioritize fast shipping and maintain a significant stock inventory. We take pride in manufacturing our products in the United States, ensuring top-notch quality and supporting local businesses. With our efficient shipping process and ample supply, customers can rely on Century Spring to promptly deliver the springs they need for their projects.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.21 in
Brand Century Spring
Finish None
Inside Diameter 0.214 in
Leg Length 1 in
Mandrel Diameter 0.17 in
Material Music Wire
Max Deflection (deg) (suggested) 436
Max Torque (suggested) 0.22 lbs-in
Measurement Units Standard
Outside Diameter 0.254 in
Rate 0.0005 lbf-in/deg
SKU TO-5050LCS
Total Coils 9.5
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 5.33 mm
Brand Century Spring
Finish None
Inside Diameter 5.44 mm
Leg Length 25.4 mm
Mandrel Diameter 4.32 mm
Material Music Wire
Max Deflection (deg) (suggested) 436
Max Torque (suggested) 0.04 N-mm
Measurement Units Standard
Outside Diameter 6.45 mm
Rate 0.06 N-mm/deg
SKU TO-5050LCS
Total Coils 9.5
Wind Direction Left
Wire Diameter 0.51 mm
