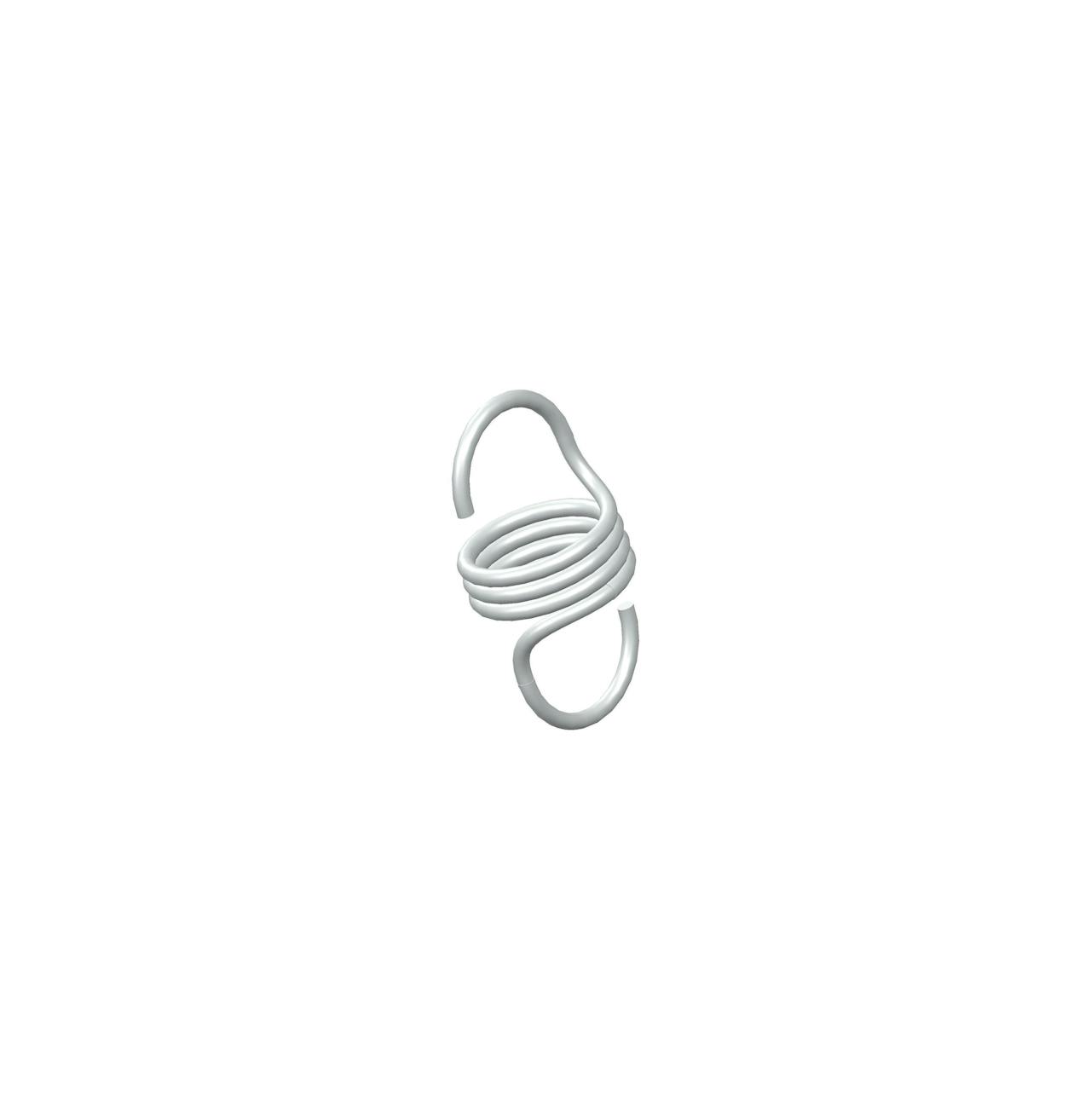

ZZ2-27CS - 0.63 Inch 302/304 Stainless Steel Extension Springs

Inventory:
Estimated Lead Time

The ZZ2-27CS is a regular extension spring manufactured by Century Spring. It is made from 302/304 stainless steel and has a natural finish. This spring has a wire diameter of 0.03 inches, an outside diameter of 0.281 inches, and a free length of 0.63 inches. It has an initial tension of 0.5 pound and a maximum deflection of 0.41 inches. The ZZ2-27CS has a spring rate of 6.9 lbs/inch and a maximum load of 3.3 pound force. It features machine hook ends and a left wind direction. This regular extension spring is suitable for a variety of applications.

At Century Spring, we take pride in our fast shipping and extensive stock inventory. We understand the importance of timely delivery, and our efficient shipping ensures that customers receive their orders promptly. Additionally, we maintain a significant stock inventory to meet the demands of various industries. Our products, including the ZZ2-27CS, are proudly made in the United States. With our commitment to quality and availability, Century Spring is the trusted choice for all your spring needs.

Download CAD
Unit System
Specs (in standard)
Label Value
A) Brand Century Spring
B) Sku ZZ2-27CS
C) Part Type Standard
D) Material 302/304 Stainless Steel
E) Wire Diameter 0.03 in
F) Outside Diameter 0.281 in
G) Length 0.63 in
H) End Type Machine Hook
I) End Position Random
J) Rate 6.9 lbs/in
K) Initial Tension 0.5 lb
L) Sugg Max Deflection 0.41 in
L) Sugg Max Load 3.3 lbf
O) Finish None
Specs (in metric)
Label Value
A) Brand Century Spring
B) Sku ZZ2-27CS
C) Part Type Standard
D) Material 302/304 Stainless Steel
E) Wire Diameter 0.76 mm
F) Outside Diameter 7.14 mm
G) Length 16 mm
H) End Type Machine Hook
I) End Position Random
J) Rate 1.21 N/mm
K) Initial Tension 0.23 kg
L) Sugg Max Deflection 10.41 mm
L) Sugg Max Load 14.68 N
O) Finish None
