Canted Coil Springs

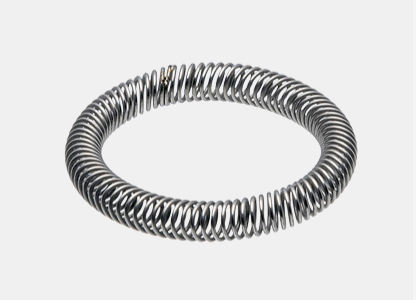

Canted Coil Springs (also known as wire-wound springs or seal springs) are wire-formed springs with helical coils that are engineered to be tilted or “canted” relative to the central axis of the helical coils. Canted coil springs are not straight like traditional helical coil springs, but instead are formed and welded into a circular or ring configuration.
Canted coil springs are typically installed either around a shaft or in a circular cavity. In such installations, they are subjected to compressive forces that act on the outer surfaces of the tilted coils, around the perimeter of the circular spring. The angled coils enable the springs to withstand constant, steady compression forces with predictable, consistent displacement. These features make them excellent options for electrical and mechanical applications that require constant contact for mechanical sealing or the conduction of electrical current. They are also great for bearing assemblies or applications that require precision mechanical load control.
For example, canted coil springs are used in actuated sealing mechanisms that require precision load control and reliable electrical conductivity. Century Spring offers standard and customized canted coil springs in various sizes and materials, tailored to meet the performance requirements of your application.
Explore Our Canted Coil Spring Options
Century Spring is proud to offer standard-sized as well as fully customized canted coil springs with many configurable options. Standard canted coil spring options include stainless steel alloys in a range of Free Heights, Wire Diameters, and Major Diameters to fit any application.
In addition to these standard options, we can also manufacture canted coil springs with custom Spring Pitches and Coil Angles to fit high-performance applications.
While we offer numerous standard-length canted coil spring options, we can also produce custom canted coil springs that are precision-cut to length and laser-welded to your exact specifications.
Request a Custom Quotation to partner with us in developing a custom canted coil spring solution specifically tailored to your exact product and performance requirements.
Custom Canted Coil Springs
Century Spring offers custom canted coil spring options encompassing both standard and custom wire stock materials. Our design and manufacturing services involve partnering with you at all stages of development—from initial concept to procurement—to develop fully customized canted coil spring solutions engineered for your exact performance requirements in any application.
Our team of spring design experts consistently works to expedite the development of all wire form products, delivering springs that meet specific load-deflection profile specifications, as well as targeted operating conditions, including target lifecycle, electrical conductivity, temperature, and corrosion protection requirements.
Don’t waste another minute if you need a novel, high-performance metal spring solution - Request a Custom Quotation today!
Canted Coil Spring Manufacturing Capabilities
Century Spring combines state-of-the-art manufacturing tools with in-house design expertise to deliver custom solutions engineered to function reliably in high-wear assemblies where low-friction performance and long cycle lifetimes are driving requirements. Our cutting-edge equipment, including CNC spring coiling machinery, enables us to manufacture canted coil springs with precise geometric tolerances even for large outer diameters.
Typical customizable custom geometry includes the spring’s Free Height, Wire Diameter, and Major Diameter. In addition to these common customization options, we can also manufacture canted coil springs with custom Spring Pitches and Coil Angles as your application demands.
Canted coil spring custom Material options include stainless steel alloys, such as 316 and 17-7. Stainless steel and other typical steel alloy canted coil springs with standard wire diameter cross-sections have an expedited lead time of approximately 3 weeks. Copper-based alloys, including beryllium copper and phosphor bronze, are commonly specified for applications that require electrical conductivity. We also offer exotic, ultra-high-performance material options, including Inconel®, for applications that demand reliable performance in highly corrosive, high-temperature environments. Such materials are typically available with lead times of approximately 6 to 8 weeks.
We also offer a wide range of Secondary Process capabilities and options, including custom heat treatments, shot peening, and surface coatings, to provide enhanced environmental protection.
