Variable Pitch Springs

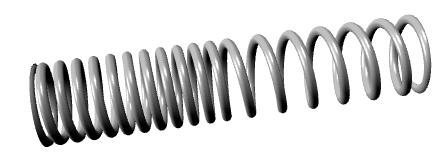

Variable pitch springs are a specialized category of helical coil springs with engineered coil spacing that varies along the spring’s length. In simplest terms, they do not have uniform spacing between the coils. Instead, the variable spacing between the spring’s coils is designed to deliver a variable counteractive force, meaning the spring's stiffness increases as it is compressed. This is very different from typical compression springs, in which the stiffness (and resisting force) is constant throughout the compression profile.
This innovative design feature offers several distinct mechanical advantages, including highly controlled deflection, progressive stiffness as the coil compresses, and the flexibility to fine-tune the spring's performance to meet exact operational needs across the full range of compression.
Variable pitch springs are integrated into mechanical systems that require a variable stiffness to accommodate varying loads and displacements, where standard constant-rate springs cannot provide the desired performance.
To fully support such nuanced load and displacement requirements across a wide range of industries and applications, Century Spring boasts world-class engineering capabilities to tackle any custom project. Our expert design team and advanced manufacturing equipment enable us to customize any spring type with pitch variation, high-strength spring materials, and optimized dimensions to deliver reliable, precision performance for any application.
Explore Our Variable Pitch Spring Options
Century Spring proudly offers expansive capabilities in manufacturing both stock and fully customized variable-pitch springs to meet your most demanding operational requirements. If you are unsure whether you need a variable pitch spring, our expert custom engineering team can help you determine the configuration that makes the most sense for your specific application.
Furthermore, to ensure a perfect fit within your unique mechanical assembly, we offer an impressive range of design variations and configurable options. You can easily customize essential parameters such as the end type, coil spacing, Wire Diameter, Free Length, and Outer Diameter to match your exact spatial constraints and desired load/deflection performance. We also carry a wide selection of stock spring materials to meet unique strength or environmental requirements. Additionally, we can tune the spring’s load and deflection to meet your requirements, delivering robust, long-lasting precision and performance.
Whether you need a standard part or a highly specialized variable pitch design, our cutting-edge CNC coiling machinery ensures reliable, precise results every time.
While a variable pitch on a helical coil spring is exclusive to compression spring types, you can browse other spring types to help you understand whether a variable pitch spring is the right choice for your application.
Shop Torsion SpringsShop Compression SpringsShop Extension Springs
Custom Variable Pitch Springs
Century Spring leverages world-class precision engineering to manufacture custom variable pitch spring designs tailored specifically to your most complex mechanical systems. Our in-house engineering team has the expertise to design and fabricate these specialized springs to meet your exact load, deflection, dimensional, and spring rate requirements.
These specialized components are especially useful in spring applications that require a variable stiffness as the applied load increases, rather than delivering the exact same linear force response throughout its full travel. By engineering variable active coil spacing along the spring's helical axis, our custom variable pitch designs can easily accommodate progressive compression loads and high-frequency dynamic loading conditions. Furthermore, when properly specified, the variable pitch reduces the risk of coil binding during compression, especially under high-magnitude impact loads.
Whether your mechanism must accommodate highly variable vibration loads, shock absorption, or provide a precision variable resistance to multiple loading profiles, our custom manufacturing services will deliver a progressive spring solution that guarantees reliable, optimized performance.
Variable Pitch Spring Manufacturing Capabilities
To meet the specific demands of your application, Century Spring offers extensive customization options for variable-pitch springs, allowing you to fine-tune the coil spacing and pitch progression to optimize the force-deflection profile.
You can specify several custom geometry options on your custom variable pitch spring, including its Wire Diameter, Outside Diameter, Free Length, Solid Height, and even the Number of Active Coils to ensure a perfect fit within your assembly's spatial constraints.
Furthermore, to optimize your spring for use in a wide range of harsh environments, our custom manufacturing capabilities include a broad selection of materials, ranging from standard high-carbon steel and music wire to corrosion-resistant stainless steel and high-performance specialty alloys such as Inconel®. Furthermore, we offer a range of surface treatments and corrosion-resistant finishes, such as electroplating, passivation, and shot peening, to protect your components against moisture intrusion, corrosive industrial chemicals, and high-cycle fatigue failure.
Ultimately, by leveraging our advanced manufacturing capabilities, you can rest assured that your variable-pitch springs deliver reliable deflection and precise spring-rate behavior, even over long product lifetimes across a wide range of environments and applications.
What Our Customers Are Saying
“Terrific customer service agents who are willing to research and find the answer if they don't know. Nice email updates and quick product delivery.”
“I am surprised that a big company like yours would work with us little guys. And Thank You because we don't have another source for springs.”
“The website works really well, that is very important to me to find what I need quickly and accurately.”
Variable Pitch Spring Information & Resources
Variable Pitch Spring Applications
Variable pitch springs are highly effective in applications with dynamic or variable load magnitudes. The non-uniform spacing between the active spring coils means the spring stiffness can be designed to increase in proportion to the total spring’s compression, allowing variable pitch springs to accommodate varying load magnitudes with a smooth, predictable compression profile.
This highly controlled force-deflection profile makes them suited for use in automotive suspension systems, vibration isolators, and industrial machinery. Additionally, they are incorporated into compact medical devices and similar mechanisms that require multiple levels of progressive resistance through the spring’s full deformation profile.
Century Spring proudly manufactures custom variable pitch springs designed to maintain exceptional performance even in the most demanding operating environments. Our expert engineering team works directly with you to understand your mechanisms' spatial constraints and deliver a customized variable pitch spring engineered for reliable performance in applications that experience repeated cycling, high-magnitude vibrations, and precision force control.
How to Design or Specify a Variable Pitch Spring
Selecting a variable pitch spring begins by clearly defining your mechanism's fundamental performance requirements, including the maximum applied load, expected deflection range, desired spring-rate behavior, available mounting space, and operating environment. This involves an assessment of the main design intent of your variable pitch spring; For example, will your spring be used in a mechanism to isolate high-frequency, random vibrations, or does it simply need to provide a variable stiffness across a known set of applied loads?
Once these baseline requirements are established, you can carefully select key geometric parameters—such as the wire diameter, outside diameter, free length, coil count, and the exact pitch variation—that are necessary to achieve your desired compression behavior.
Next, choose a spring material based on the specific demands of the application environment. For example, stainless steel is an economical option for environments subjected to high humidity or corrosive fluids; high-performance superalloys are custom-made to deliver excellent dimensional stability, fatigue resistance, and strength in the most extreme conditions.
How Variable Pitch Springs Work
Variable pitch springs feature uneven spacing between their active coils, designed to create a highly controlled variation in mechanical behavior under compression. When the coils are compressed under load, the coils that are spaced closer together make contact and are the first to become inactive, while the coils with greater spacing remain active and continue absorbing energy. This gradual reduction in the number of active coils creates a progressive spring rate, meaning the spring naturally becomes stiffer and provides greater resistance as the applied load increases.
Ultimately, this specialized variable-pitch configuration enables fine-tuning of the spring’s load and deflection response, making it an ideal solution for dynamic applications where standard constant-pitch springs cannot provide the desired load-deformation performance.
FAQs About Variable Pitch Springs
What are variable pitch springs?
Variable pitch springs are a specialized category of helical coil springs uniquely designed with uneven spacing between their active coils. This intentional variation in coil spacing gives it a progressive spring rate, meaning the spring’s stiffness changes through the full range of spring compression. This single design feature makes variable pitch springs effective at handling heavy impacts and high-frequency vibrations in precision mechanisms.
How do variable pitch springs differ from constant pitch springs?
Put simply, constant pitch springs feature equal spacing between the helical coils, whereas variable pitch springs utilize uneven spacing along the length of the spring. Constant pitch springs deliver a linear force response with a constant stiffness, while variable pitch springs provide a progressive spring rate that dynamically adjusts to the applied load.
What are variable pitch springs used for?
Variable pitch springs (a type of progressive spring) are primarily used in dynamic applications that must safely accommodate varying load magnitudes. For example, they integrated into heavy-impact and vibration-sensitive mechanisms such as automotive suspension systems and industrial vibration-isolation equipment.
Do variable pitch springs have a progressive spring rate?
Yes, variable pitch springs may have a progressive spring rate (i.e., stiffness) that does not remain constant throughout the spring's deformation profile but rather “progresses” as the spring compresses. However, the variable pitch can be engineered to create different spring rates, as the spring is compressed; for example, the spring rate (stiffness) might increase and then decrease through the deformation profile, meaning the spring rate is not strictly progressive in one direction. In this sense of the word, variable pitch springs have a progressive spring rate.
Can variable pitch springs be custom-manufactured for specific load requirements?
Yes, variable pitch springs can be custom-manufactured to meet your specific load, deflection, and environmental performance requirements. Customizing the coil spacing and pitch progression allows for the fine-tuning of the spring's progressive force-deflection profile and delivers the precision stiffness required for a dynamic load profile. Other geometry and design parameters, such as outer diameter, material, wire diameter, and free length, can also be customized as needed.
